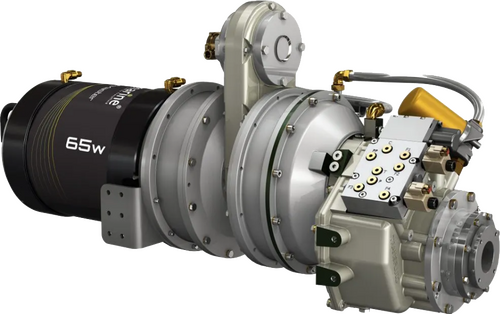

Liquid Cooled
Reduction ratio i= 1.40 - 1.88 - 2.25 - 2.75
Propeller rpm = motor rpm/i
- Motor with mounting brackets and silent blocks
- Live PTO available
- Marine gear with integrated thrust bearing (up to 130 kW)
- Oil temperature sensor
- Output offset 103 mm
- Elastic coupling between motor and transmission
- Vector control inverter IP65
- Main switch and main fuse
- DC-DC converter 12 Vdc
- 1,5m cable for display, lever, key
- Quick install / easy connect / plug and play
- Inlet and outlet liquid connections
- Throttle lever (TFC)
- Self priming pump (mechanical) mounted aboard
- Oil-water cooler mounted aboard
- Closed loop liquid cooling
Optional:
- NMEA2000 compatible (upon request)
- DP280 ratio i= 1.59 - 2.01 - 2.41 - 2.87 - 3.35 - 3.97 - 5.01
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV230025W ●●● | ShaftMaster 25W | 220-20 | 20 | 25 | 96 | 3000 |
| BV230035W ●●● | ShaftMaster 35W | 220-20 | 30 | 35 | 144 | 3000 |
| BV230045W ●●● | ShaftMaster 45W | 220-35 | 35 | 45 | 288 | 3000 |
| BV230065W ●●● | ShaftMaster 65W | 300-50 | 50 | 65 | 288 | 3000 |
| BV230100W ●●● | ShaftMaster 100W | 300-75 | 75 | 100 | 288 | 3000 |
| BV230130W ●●● | ShaftMaster 130W | 300-75 | 100 | 130 | 384 | 3000 |
| (●●●) According to reduction ratio |
