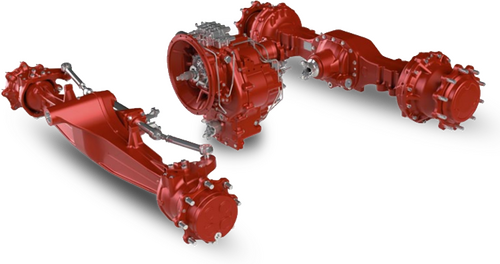

The Carraro BHL Axles embody solutions that are able to meet requirements for both entry level machines, which call for robust and flexible configurations, and premium machines, which demand the best performance in fuel efficiency and productivity. Each axle model is available with several reduction ratios, multiple widths, and various vehicle mounting interfaces. These features, combined with the large number of available options, ensure that virtually any machine usage or application can be met. Every axle has been designed for use under the severest conditions, with a high load capacity and robust gear design to ensure an extended service life with improved durability.
- Authorized Distributor
- Genuine Parts
- Service and Support
| TCB80 2WD | TCB80 4WD | |
| Power Rating | 82 kW @ 2,200 rpm | 82 kW @ 2,200 rpm |
| Max input Torque | 750 Nm | 750 Nm |
| Max input speed | 2,400 rpm | 2,400 rpm |
| Internal Pump Type | Gear | Gear |
| Engine Flywheel Interface | SAE 3 | SAE 3 |
| Output Flage Type | Yoke 1410 | Yoke 1410 |
| 2WD output drop from Engine | 180 mm | 180 mm |
| 4WD output drop from Engine | – | 323 mm |
| Vehicle Pump Interface | SAE C | SAE C |
| Torque Converter Size | W300 | W300 |
| Speed Gear | 4 Fwd + 4 Rev | 4 Fwd + 4 Rev |
| Fwd/Rev Ratios Option | 1:1 / 1:0.829 | 1:1 / 1:0.829 |
