Eaton dbb

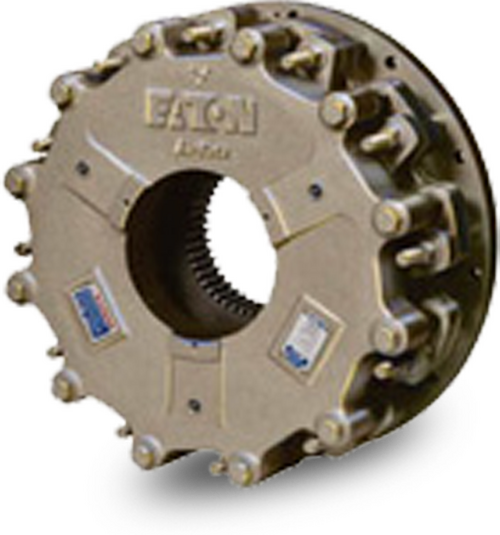

Palmer Johnson is an authorized distributor for the Airflex DBB brakes. The Airflex DBB brakes are spring applied and air or hydraulically released, disc style brakes designed for cyclic applications where heat dissipation is critical. DBB brakes are offered in a wide array of sizes with the brake disc diameters ranging from 9 to 38 inches.

Whether you are needing genuine Airflex parts, service manuals or parts lists, or you are wanting one of our factory trained technicians to repair your DBB brake, we’ve got you covered. Contact the Airflex experts today!

Size/Model NumberPart Number
Airflex 109DBB146333A
146333BS
146333BX
146333D
146333DL
146333E
146333F
Airflex 209DBB146334A
146334D
146334E
Airflex 309DBB146380D
Airflex 115DBB146222D
146222DN
146222E
146222EA
146222EC
146222ED
146222EK
146222EL
146222EM
146222EU
146222EV
146222EX
146222F
146222G
146222J
146222L
146222M
Airflex 215DBB146337D
146337DP
146337E
Airflex 120DBB146299D
146299E
146299EF
146299ES
146299ET
146299FW
Airflex 220DBB146300A
146300BJ
146300BN
146300DJ
146300E
146300EG
Airflex 320DBB146378
Airflex 420DBB146379
Airflex 125DBB146315E
Airflex 225DBB146327D
146327E
Airflex 325DBB146370D
146370E
Airflex 425DBB146381
Airflex 138DBB146295E
Airflex 238DBB146296D
146296E
Airflex 338DBB146386E
146386EZ
Airflex 438DBB146387D

Contact Us

Airflex DBB Brake Product Features

  • Optional split friction discs simplify maintenance by allowing friction discs to be removed without disturbing other components of the drive system in mid-shaft brake arrangements
  • Low-inertia friction disc assembly improves reliability by reducing the overall inertia that must be stopped
  • Static torque capacities up to 2,535,750 lb-in (286.524 Nm) equalize torque in either direction of rotation
