Twin Disc MGE 5065 SC Hybrid Electric Marine Transmission

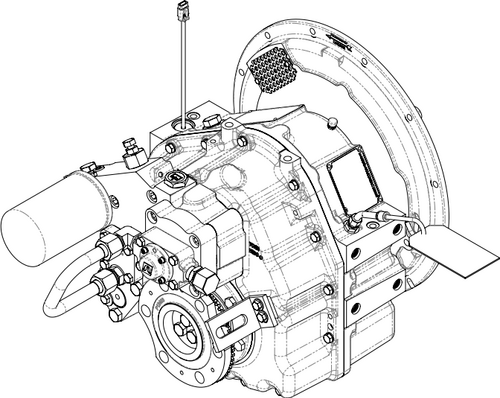

Twin Disc MGE-5065SC Hybrid Marine Transmission

Twin Disc has taken its field-proven marine transmissions and created the MGE Series of gearboxes. This design provides power from the motor immediately in both clockwise and counter-clockwise directions. All units are equipped with a bi-directional oil pump to provide lubrication no matter the direction of shaft rotation, making these units a perfect fit for serial hybrid and diesel-electric applications or any application requiring a direct power response with a ratio reduction.

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGE-5065SC hybrid marine transmission needs. Contact us today for further support with the Twin Disc MGE series of electric & hybrid marine transmission solutions.


Twin Disc MGE-5065SC Features & Benefits

  • Vertical offset, lightweight aluminum alloy housing
  • Bi-directional lubrication pump
  • Simplified design without a clutch
  • Same installation envelope as standard marine transmission
  • Same ratios as MGX-5065SC
  • Metric design (except for some power transmitting and plumbing components)
  • Marine survey society type approvals and unit certification available

Standard Equipment

  • Input flange for freestanding installation
  • Oil strainer mounted

Optional Equipment

  • Adaptations for close coupled installation
  • Companion flange/bolts set
  • Mounted heat exchanger
  • Mounting brackets
  • Monitoring devices to customer’s specification
