Palmer Johnson is North America’s leading distributor for all of your Twin Disc MG-5114DC (MG5114DC) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MG-5114DC transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!

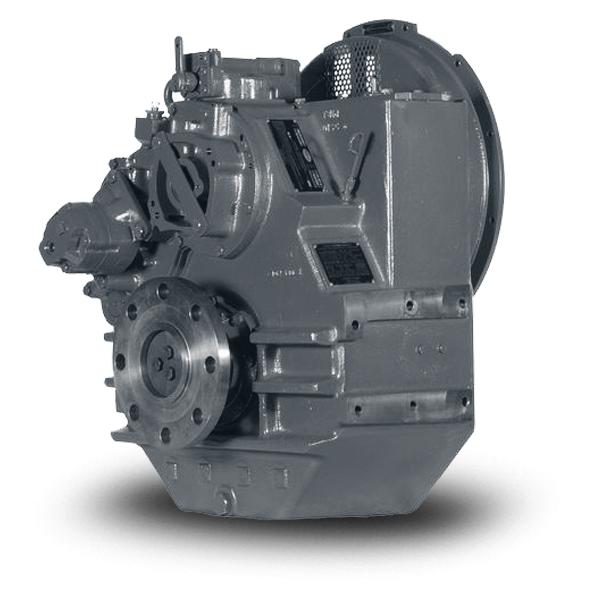

MG-5114 DC
Standard Equipment
- SAE J617 housing no. 1
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Mechanical control valve
- Oil strainer
Options
- Flexible coupling for 11.5” flywheel (SAE J620 size 290)
- Electric control valve (12VDC or 24 VDC)
- Trolling valve (mechanical or electrical)
- Oil filter mounted
- Oil cooler with thermostatic bypass valve
- Companion flange/bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO – (max. 592 Nm)
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) - Hydraulic Clutchable PTO – (max. 415 Nm)
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) - Hydraulic Clutchable PTO – (max. 415 Nm)
Shaft with key
- Authorized Distributor
- Genuine Parts
- Service and Support
Maximum 673 kW (900 hp) @ 2300 RPM (Pleasure Craft)
