Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5114IV (MGX5114IV) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5114IV transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!

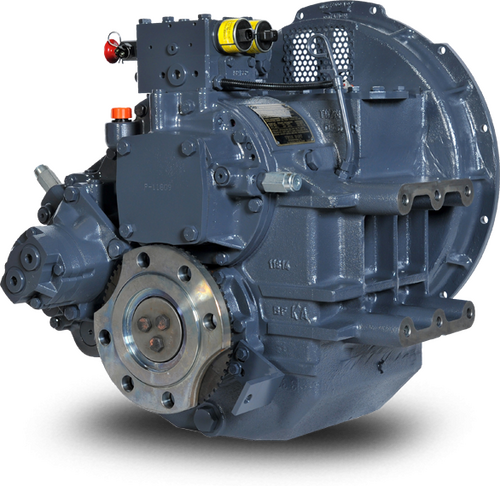

MGX-5114 IV
Standard Equipment
- Integral V-drive, aluminum housing
- 14° down angle on output shaft
- Electric GP-valve with manual override
- EC050 Profile module – interface for engagement signals
- Oil strainer and oil filter
Options
- SAE J617 housing no. 1
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Flexible coupling for 11.5” flywheel (SAE J620 size 290)
- Input flange for freestanding installation
- Mechanical control valve
- EC050 E-Troll module – interface for engagement & trolling signals
- Harness with single point interface to Twin Disc EC300 control system
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO:
- SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
- SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 209 Nm)
- SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 338 Nm)
- SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
- Hydraulic clutchable PTO:
- SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)
- Authorized Distributor
- Genuine Parts
- Service and Support
Maximum 673 kW (900 hp) @ 2300 RPM [Pleasure Craft Duty]
