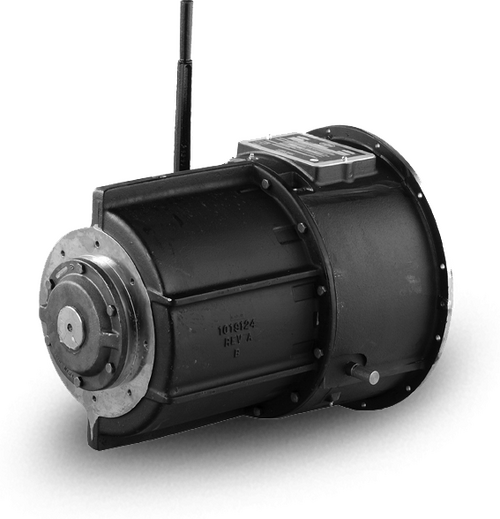

The SP314S series PTO is a straddle bearing power take-off that is ideal for large side load applications. The SP314S (SP314, SP314SB1) power take-off is used in a wide array of applications with the most common being sand dredges, irrigation pumps, crane & hoisting, metal shredders, recycling equipment, jaw crushers, and compressors.
Palmer Johnson Power Systems is North America’s leading Twin Disc distributor with over 40 years of experience servicing the Twin Disc product line. We have an expansive inventory of replacement parts and complete units for the SP314S series PTO’s. In addition to our inventory, we have product experts that can troubleshoot your issues and offer sound solutions as well as factory trained technicians that can repair your PTO and get you back up and running quick. No matter the need for your SP314S power take-off, we are here to help. Contact us today!
Key Features
- Straddle-bearing design
- No pilot bearing
- Ball-bearing throw out
- Optional sintered iron plates
- Built-in hex nut
- More suitable for side load applications
- Ease of installation
- Allows for more frequent engagements
- Creates 25% higher torque capacity
- Eases adjustment verification
- Authorized Distributor
- Genuine Parts
- Service and Support
Active Twin Disc BOM & Assembly Numbers: SP314S106, SP314S107, SP314S108, SP314S111, SP314S114, SP314S115, SP314S116, SP314S117, SP314S118, SP314S119, SP314S120, SP314S122, SP314S123, SP314S124
Legacy Twin Disc BOM & Assembly Numbers: SP314S101, SP314S102, SP314S103, SP314S104, SP314S105, SP314S109, SP314S110, SP314S112, SP314S113, SP314S121
OEM Assembly Numbers:
- SP314S101 equals Morbark P/N 24542-601, 24542601
- SP314S112 equals Morbark P/N 24542-403, 24542403
- SP314S113 equals Morbark P/N 24542-405, 24542405
- SP314S119 equals Morbark P/N 24542-407, 24542407, Bandit P/N 900-6944-08, 900694408
Maximum input torque (lb-ft) Class I - 2430
Clutch Maximum HP Rating
- Class II - 564
- Class III - 376
- Class IV - 282
